Materials & Assembly

Jan - May 2017 | Materials & Assembly | Advised by: Gerard Damiani

A collection of technical drawings.

Assignment 1

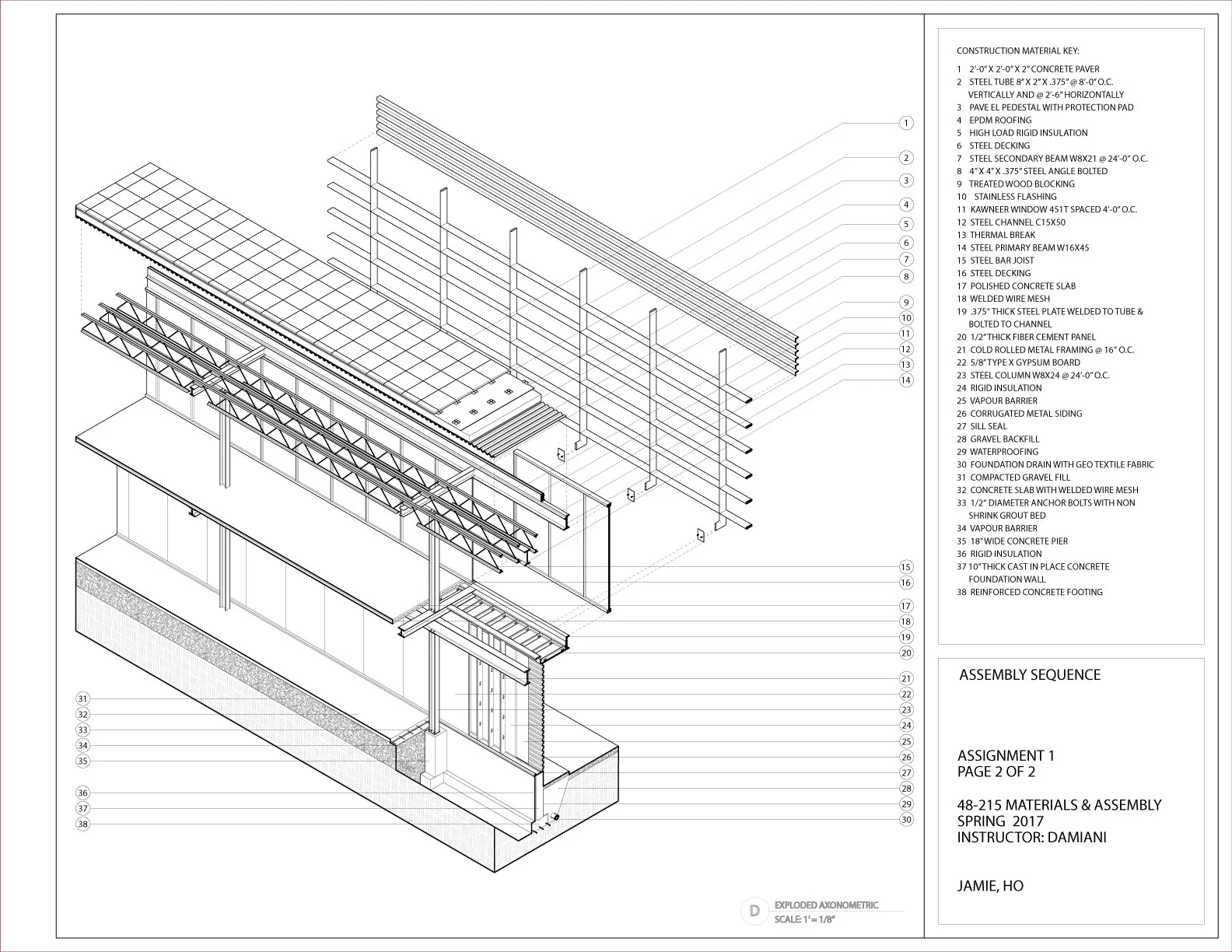

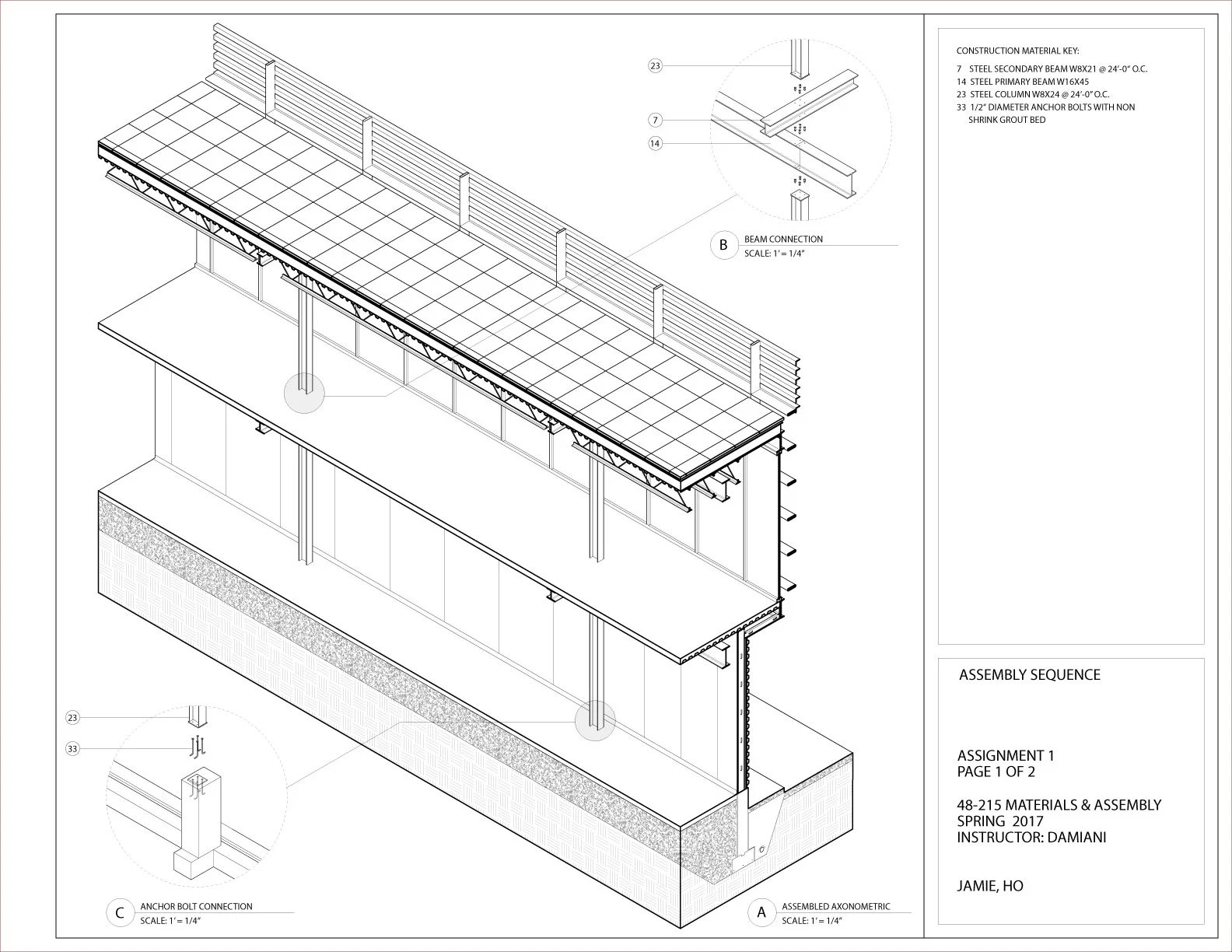

A 3D model was developed based on an existing 2D section, which was then used to generate axonometric drawings with pull-out details and assembly sequence details.

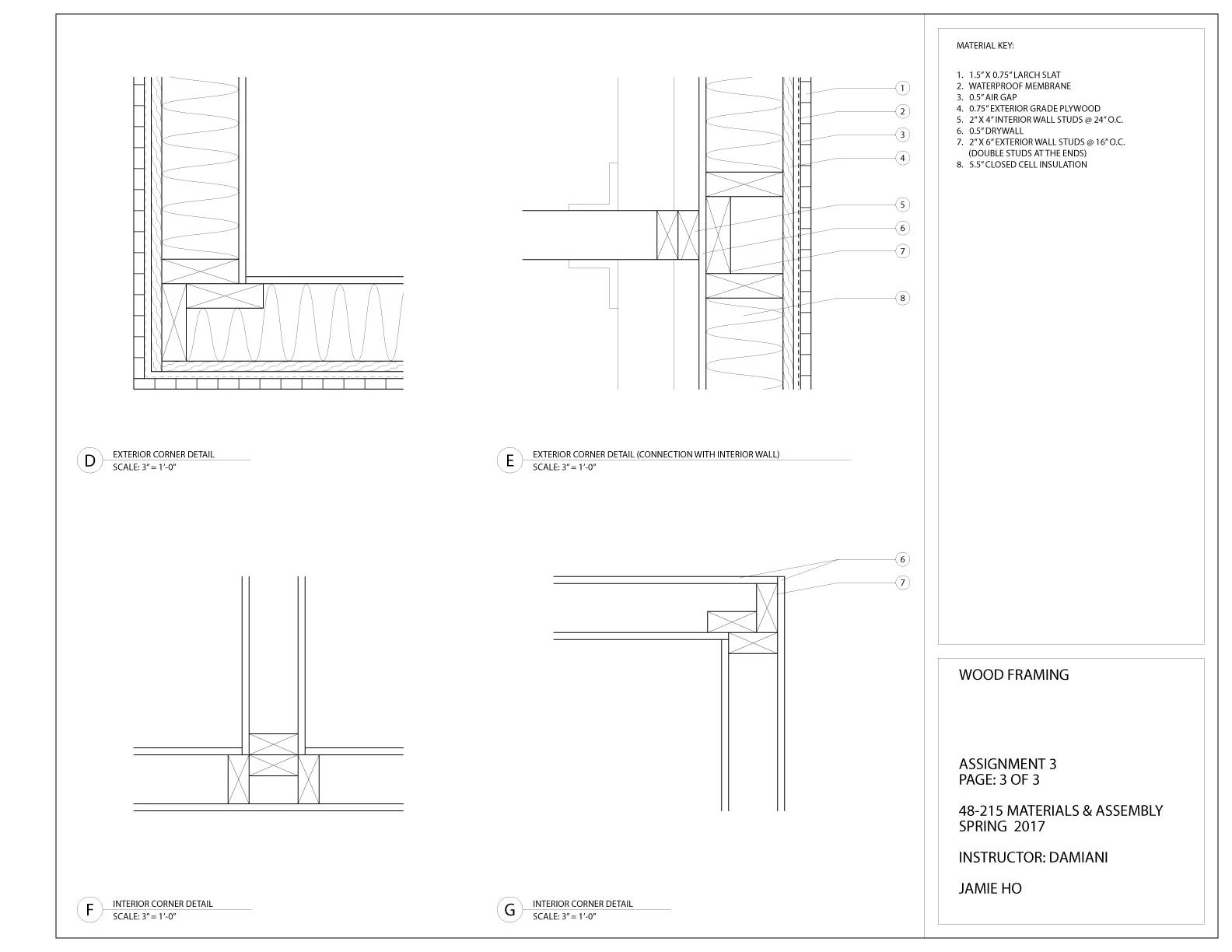

Assignment 3

Assignment 4

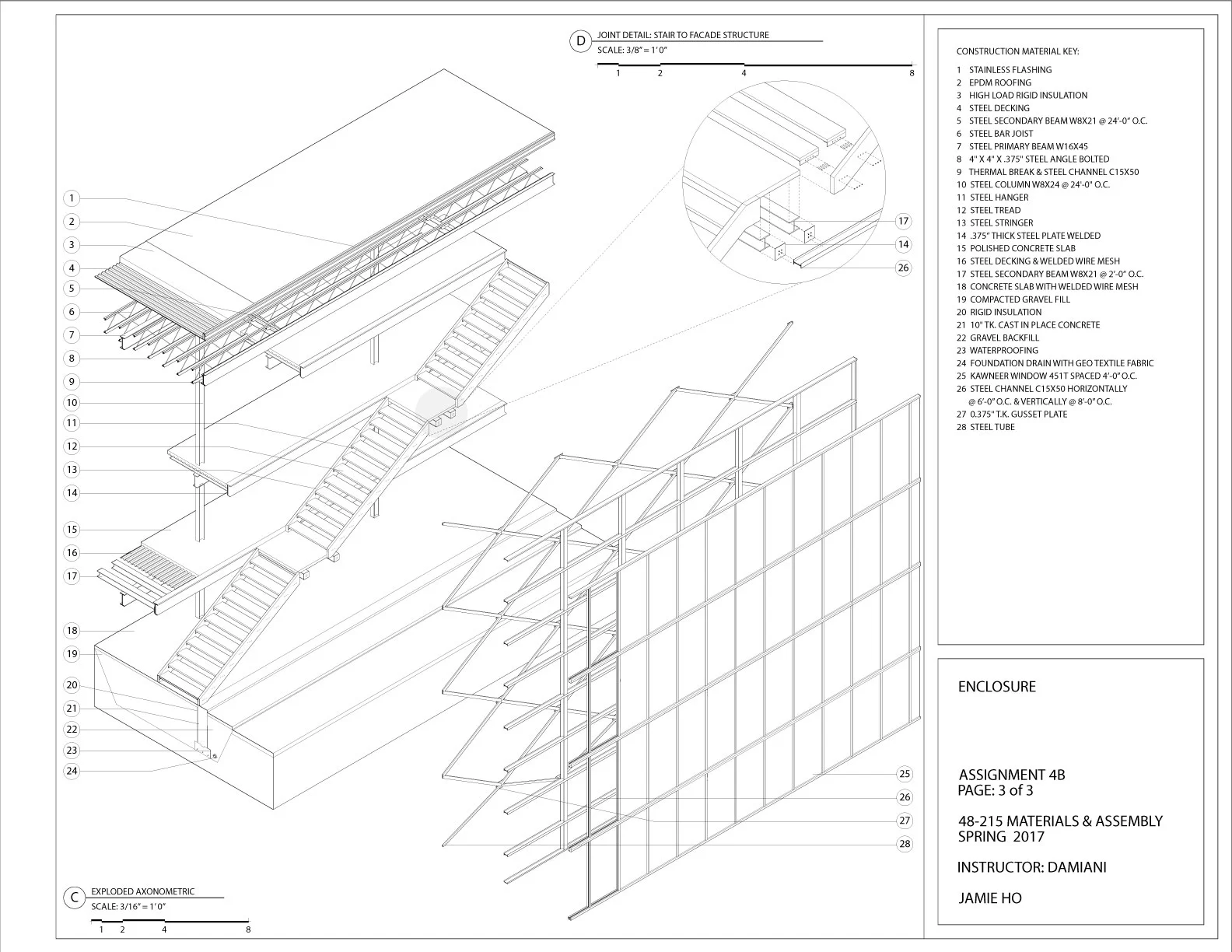

A set of drawings of a simultaneous studio project detailing materials, enclosure design, and egress design that followed code regulations.
